3U VPX

page-heading

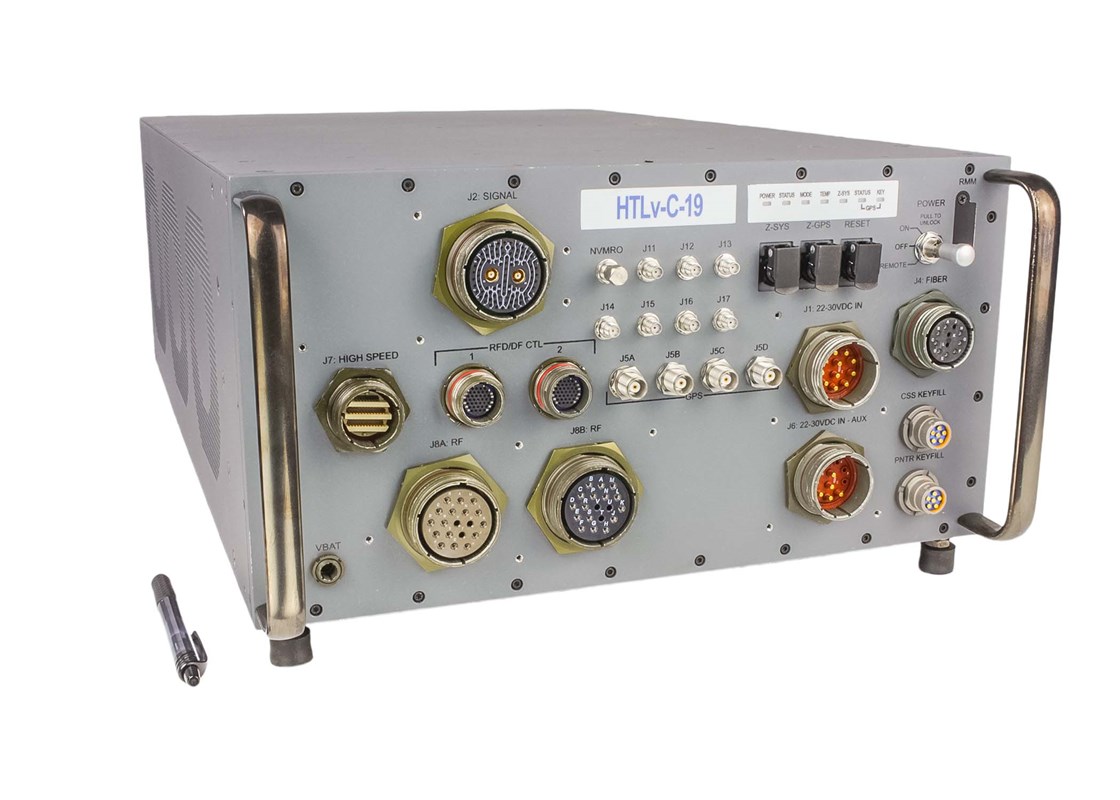

HTL-C-19_Slot

HTLv-C-19

The HTLv‐C-19 is a 3U VPX reference chassis, designed per Technical Standard for Sensor Open Systems Architecture (SOSA™) Reference Architecture, Version 1.0, dated September 7, 2017





Request Spec Sheet



3UVPX_11_slot_Chassis_cropped

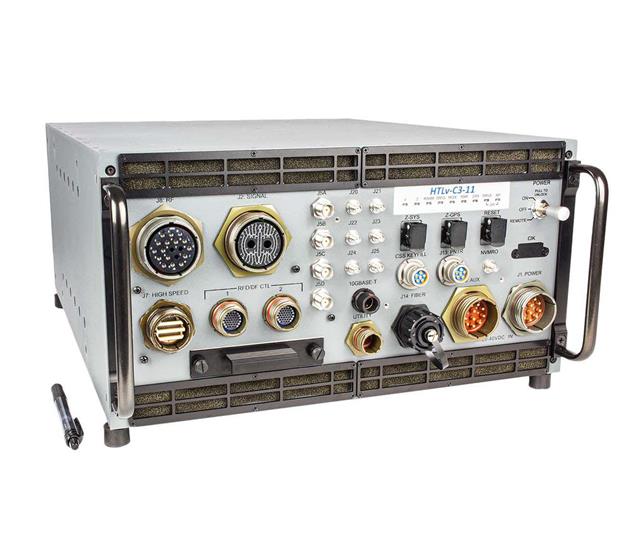

HTLv-C3-11

The HTLv-C3-11 is a SOSA™ Release 1.0 aligned 3U VPX 11-slot reference chassis





Request Spec Sheet



PNTRv

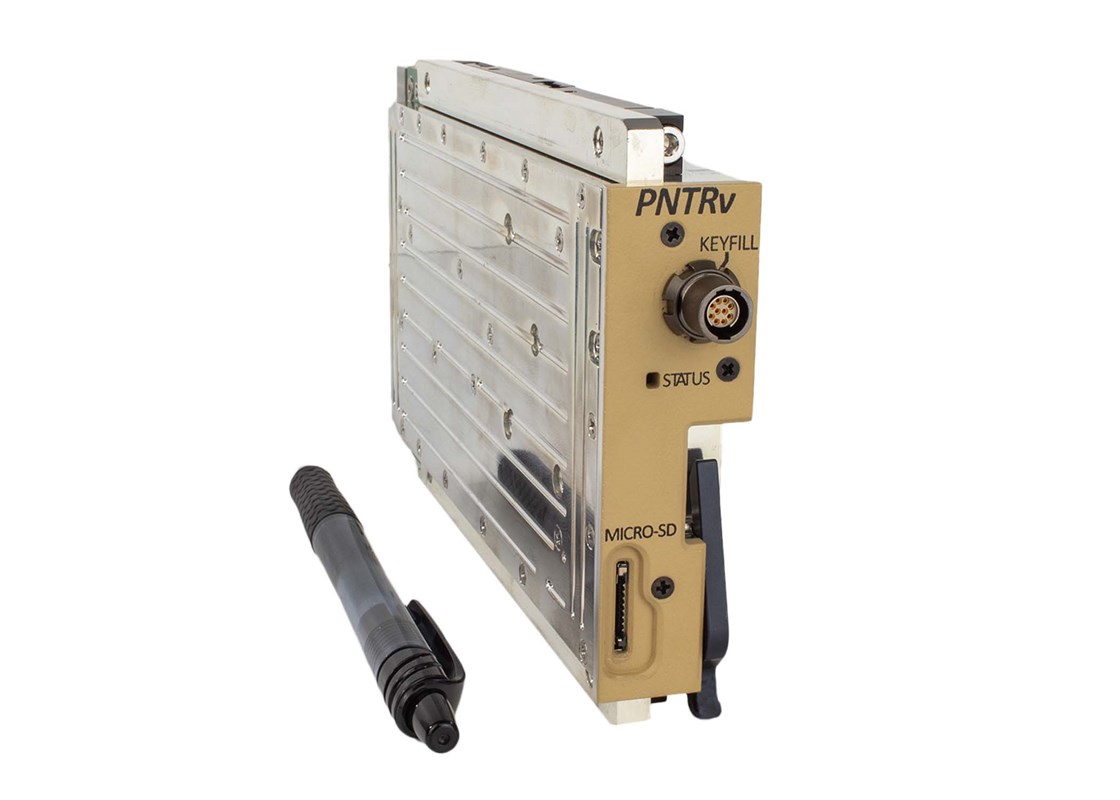

PNTRv

3U OpenVPX Precision Navigation and Timing Reference Module

The PNTRv design requirements were derived from the Joint Airborne SIGINT Architecture (JASA) specification.





Request Spec Sheet

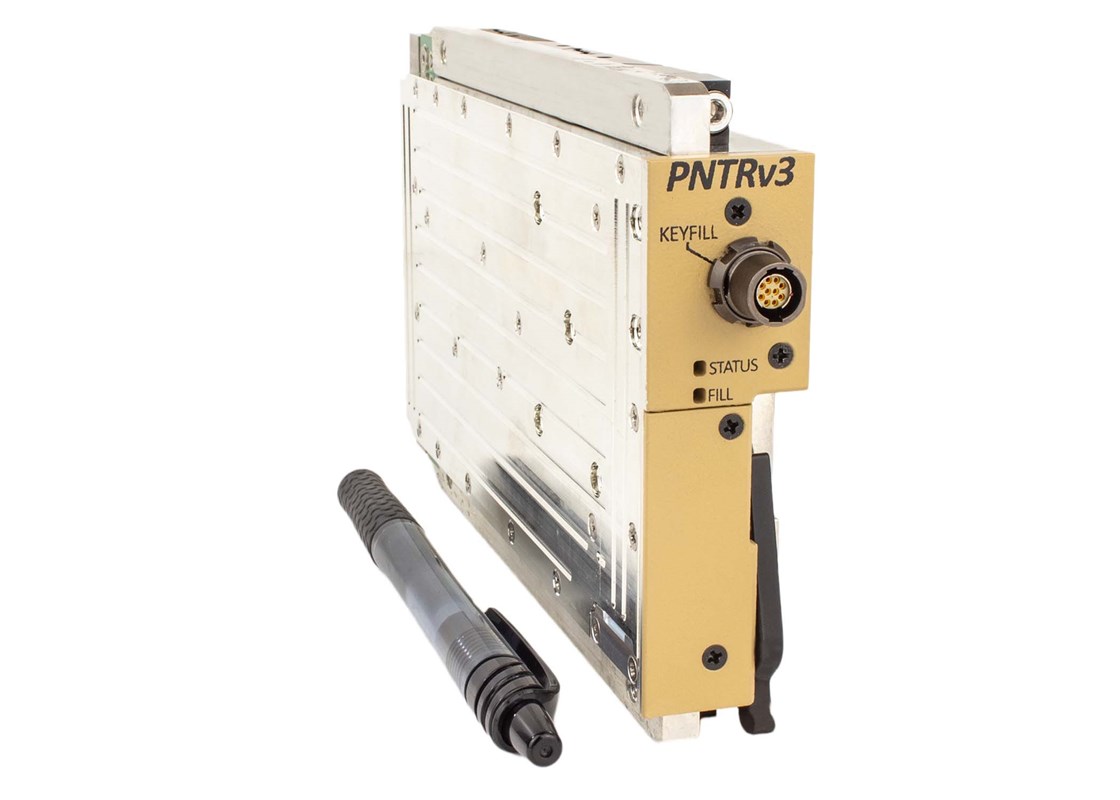

PNTRv3

PNTRv3

3U OpenVPX Precision Navigation and Timing Reference Module

The PNTRv3 is SOSA™/CMOSS Release 1.0 aligned. The design requirements were derived from the Joint Airborne SIGINT Architecture (JASA) specification.





Request Spec Sheet

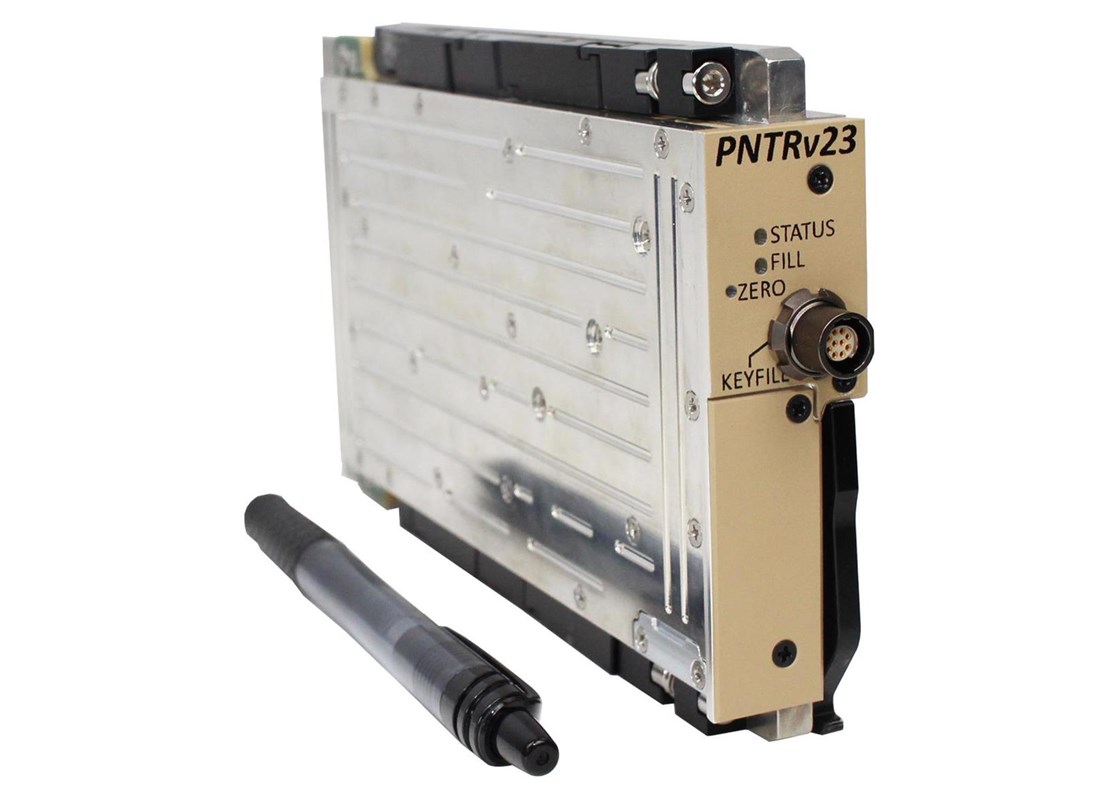

PNTRv23_small

PNTRv23

3U OpenVPX Precision Navigation and Timing Reference Module

The PNTRv23 is SOSA™/CMOSS Release 1.0 aligned. The design requirements were derived from the Joint Airborne SIGINT Architecture (JASA) specification.





Request Spec Sheet



HTLv_13

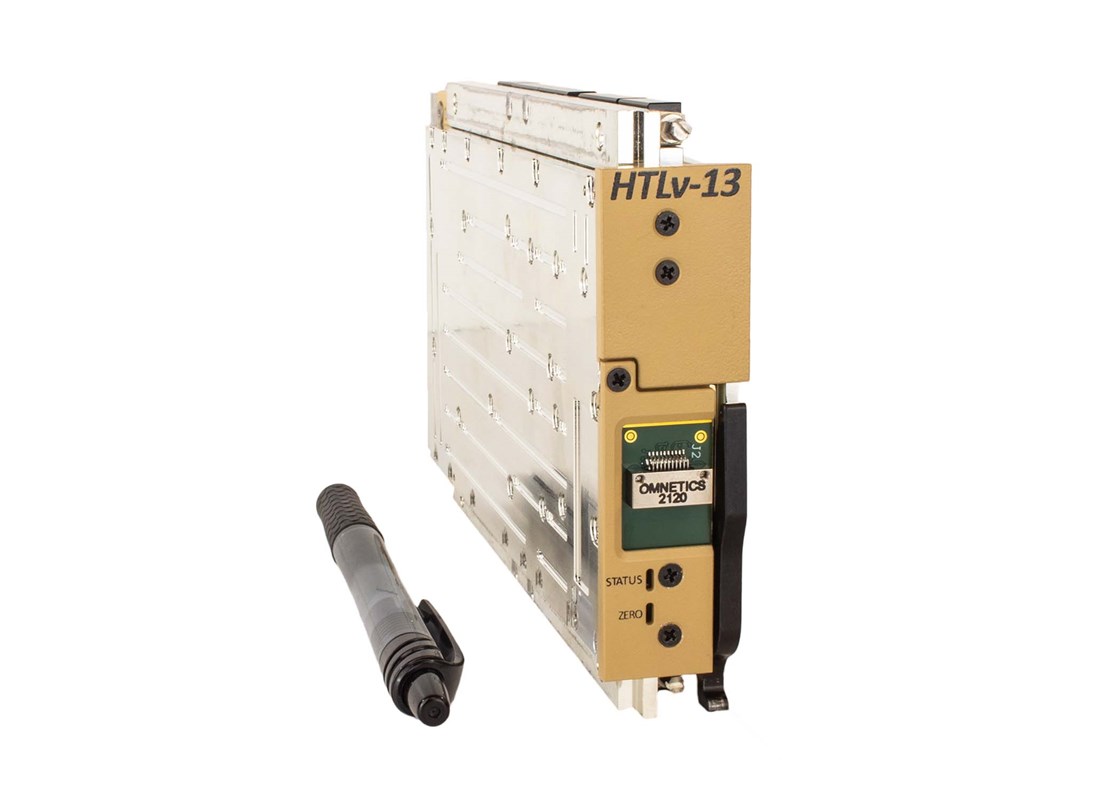

HTLv-13

3U OpenVPX Quad Transceiver Module

The HTLv‐13 is a SOSA™/CMOSS Release 1.0 aligned Multi-Channel Software Defined Radio packaged as a 3U REDI/VITA 67.3 conduction‐cooled VPX module designed to support various missions.

Extended frequency range 2 MHz-6,000 MHz with 80 MHz instantaneous BW/channel (320 MHz total coverage)



Request Spec Sheet



HTLv-23

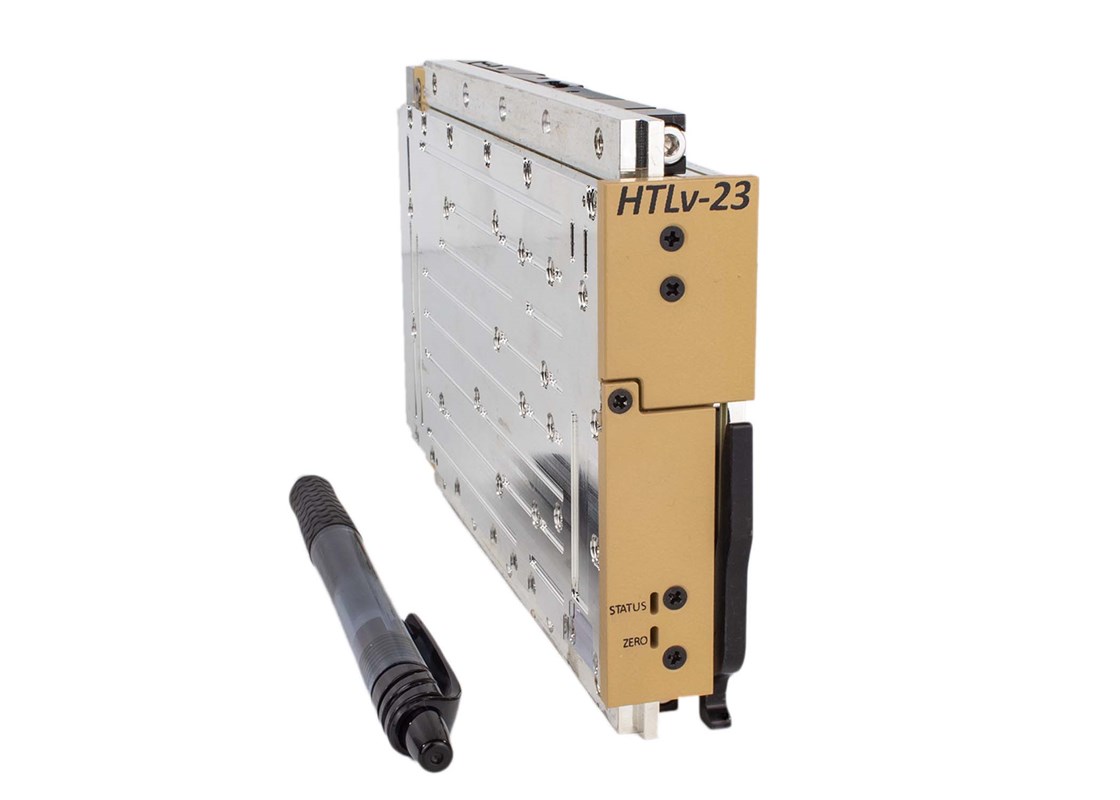

HTLv-23

3U OpenVPX Dual Channel HF/VHF/UHF/Microwave Transceiver Module

The HTLv‐23 is a SOSA™/CMOSS Release 1.0 aligned Software Defined Radio packaged as a 3U REDI/VITA 67.3 conduction‐cooled VPX module designed to support various missions.

Extended frequency range 2 MHz-20,000 MHz, 80 MHz instantaneous BW/channel (160 MHz total coverage)



Request Spec Sheet



HTLv-43_Scale

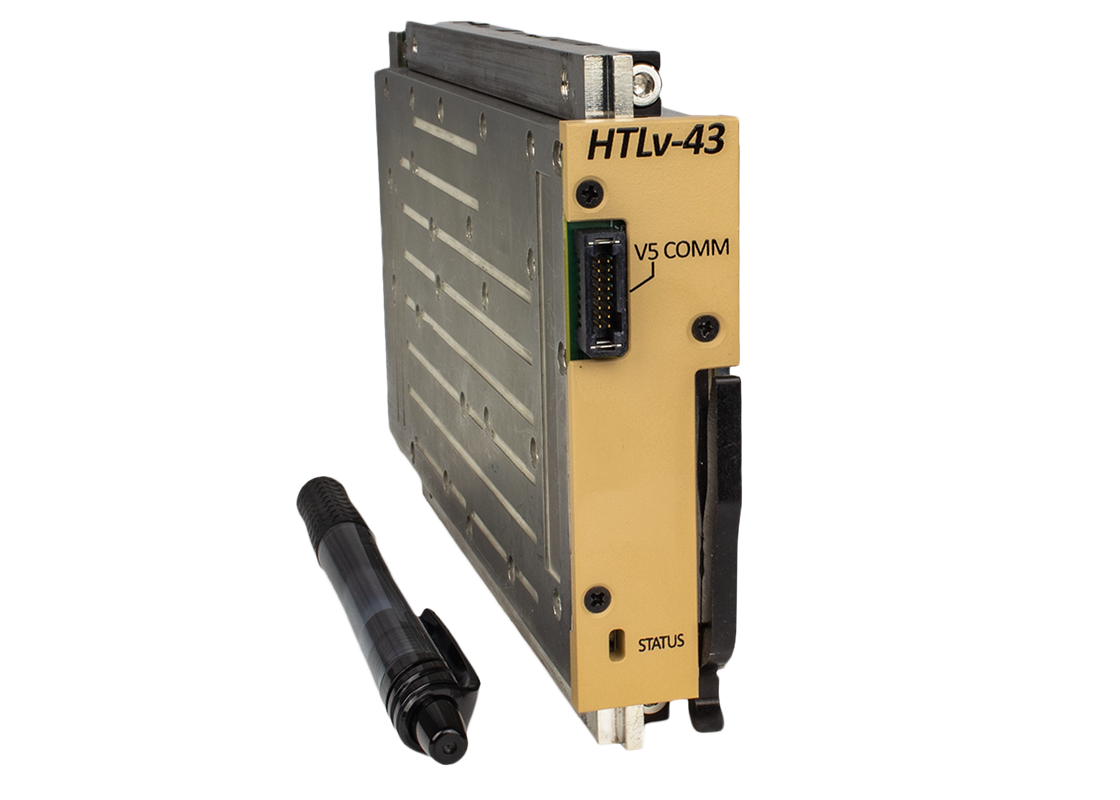

HTLv-43

3U OpenVPX Quad Transceiver Module

The HTLv‐43 is a SOSA™/CMOSS Release 1.0 aligned exciter/receiver module packaged as a 3U REDI/VITA 67.3 conduction‐cooled VPX module designed to support various missions.



Request Spec Sheet



HTv-53_Upright_pen

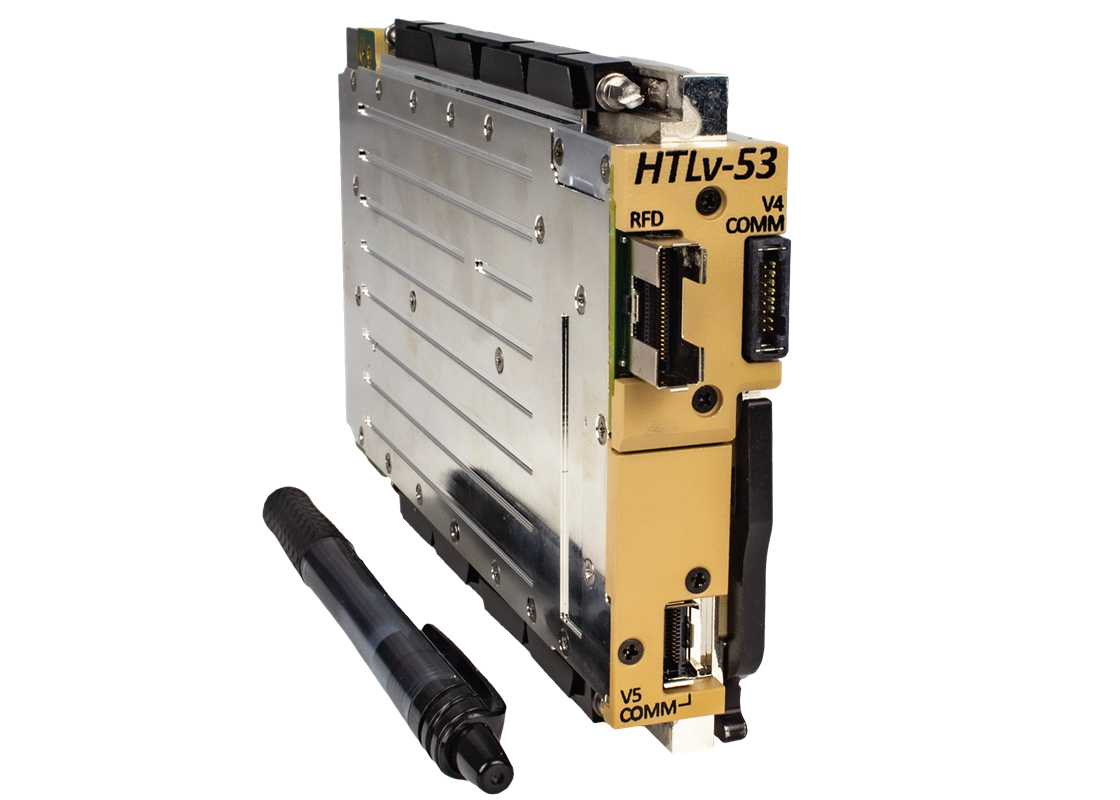

HTLv-53

3U OpenVPX Data Converter Module

The HTLv‐53 is a SOSA™/CMOSS Release 1.0 aligned data converter and FPGA module.



Request Spec Sheet



HTLv-1

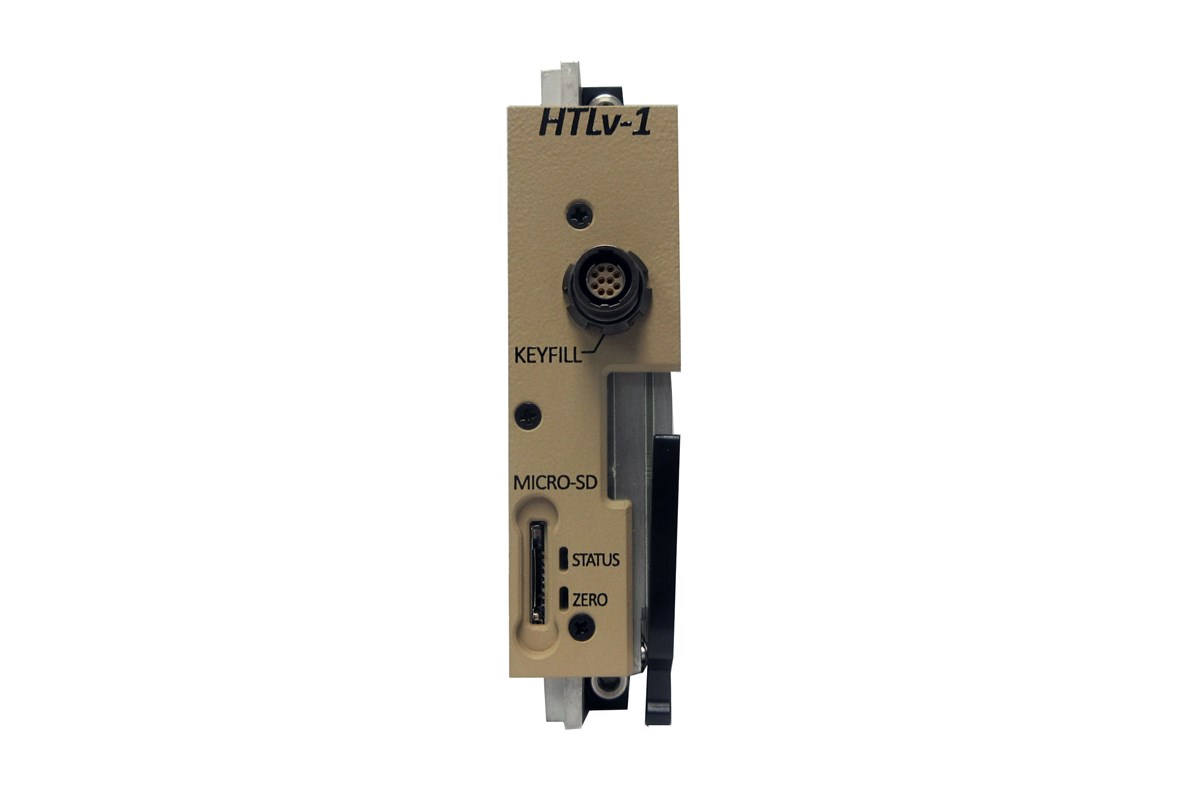

HTLv-1

3U OpenVPX Quad Channel HF/VHF/UHF Transceiver Module

The HTLv-1 is a 4-Channel Software Defined Radio packaged as a 3U REDI/VITA 67.3 conduction‐cooled VPX module designed to support various missions.

Extended frequency range 2 MHz-6 GHz with 80 MHz IFBW (320 MHz total coverage)



Request Spec Sheet



HTLv-2

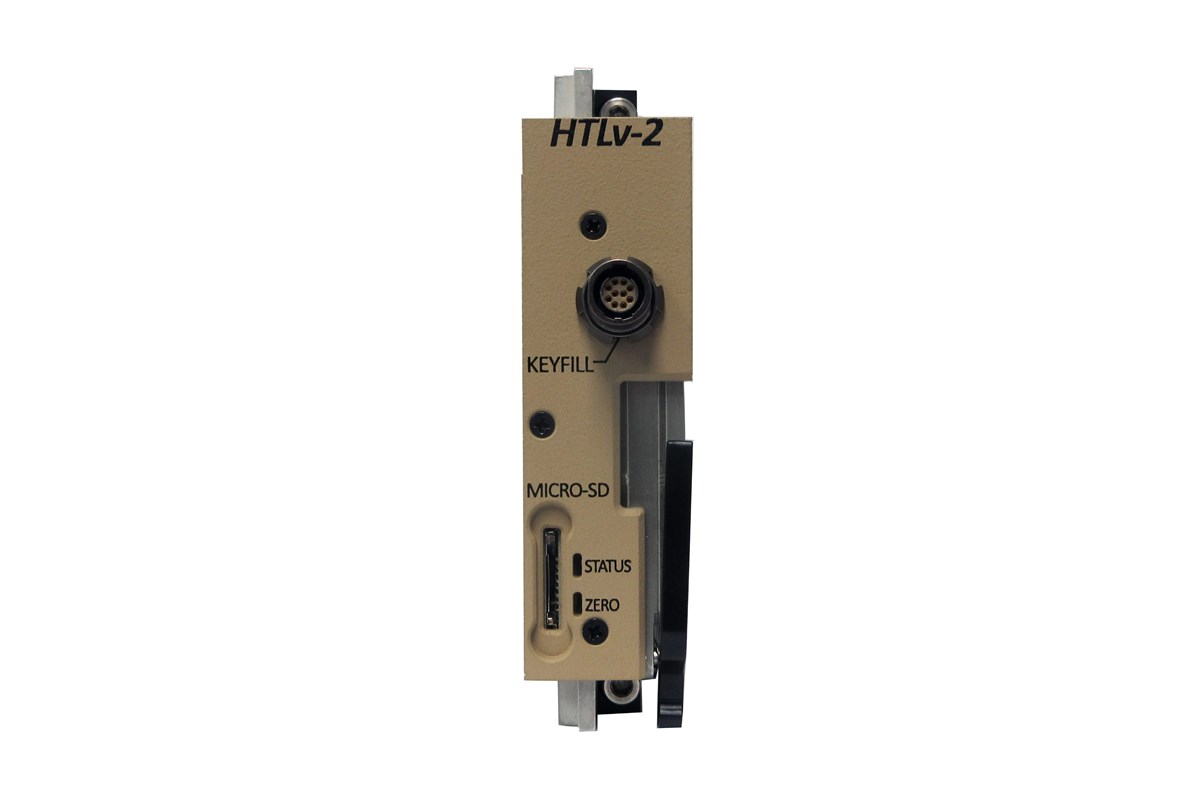

HTLv-2

3U OpenVPX Dual Channel HF/VHF/UHF/Microwave Transceiver Module

The HTLv‐2 is a 2-Channel Software Defined Radio packaged as a 3U REDI/VITA 67.3 conduction‐cooled VPX module designed to support various missions.

Extended frequency range 2 MHz-20 GHz with 80 MHz IFBW (160 MHz total coverage)



Request Spec Sheet
